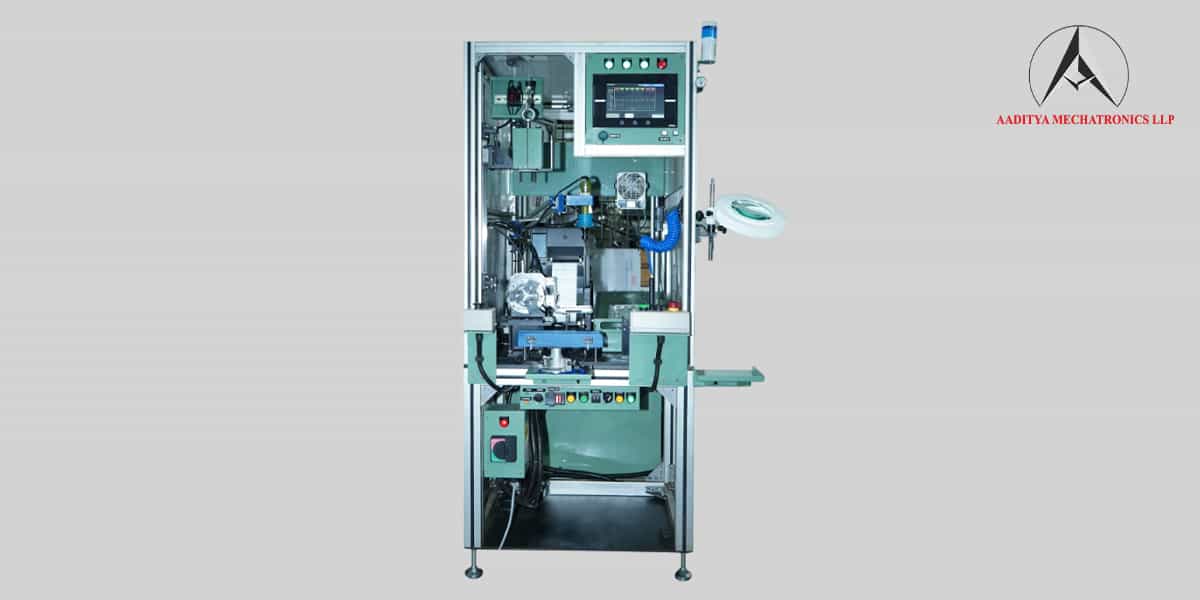

Circuit Assembly Machine
The Circuit Assembly Machine from Aaditya Mechatronics LLP is an advanced, fully automatic solution designed for precise and efficient assembly of electronic circuits.
This system integrates smart automation technology to assemble components accurately, reduce manual work, and improve production efficiency in electronics manufacturing.
KEY FEATURES
1. Automatic Assembly Process: Streamlines circuit component placement and assembly with minimal human intervention.
2. High Precision Operation: Ensures accurate alignment and assembly of delicate electronic parts.
3. Smart PLC + HMI Control: Intuitive interface for easy operation, diagnostics, and real-time monitoring.
4. Custom Configurable Design: Adaptable for different types of circuits and electronic components.
5. Servo & Pneumatic Integration: Enables smooth motion control for high accuracy and reliability.
6. Compact & Durable Build: Designed for continuous industrial operation with minimal maintenance.
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Operation Type | Automatic |
| Function | Circuit Component Assembly |
| Brand | Aaditya Mechatronics LLP |
| Control System | PLC + HMI Based |
| Power Supply | 230V AC, 50Hz |
| Drive System | Servo / Pneumatic |
| Cycle Time | 5–8 seconds per assembly |
| Construction | Heavy-duty MS Frame |
| Optional Features | Vision inspection, data logging, component feeding system |
